Product Details:
|
| Condition: | 100% New | Warranty: | Not Available |
|---|---|---|---|
| Engine Model: | QSB3.3 4D95 | Type: | Oil Pump |
| Packing: | Original Package-Carton Box | Size: | Standard Size |
| High Light: | 4d95 Komatsu Oil Pump,B3.3 Komatsu Oil Pump,4945774 Standard Oil Pump |
||
4D95 Oil Pump QSB3.3 B3.3 4945774 4982682 Cummins 6204-51-1100 6204-51-1201 Komatsu
Product Description

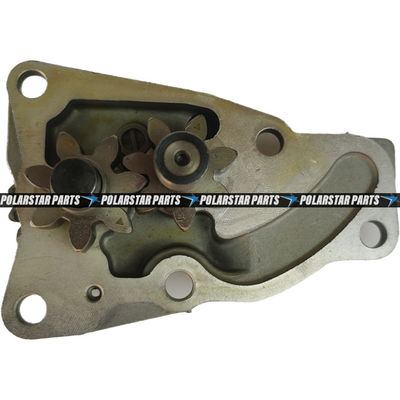

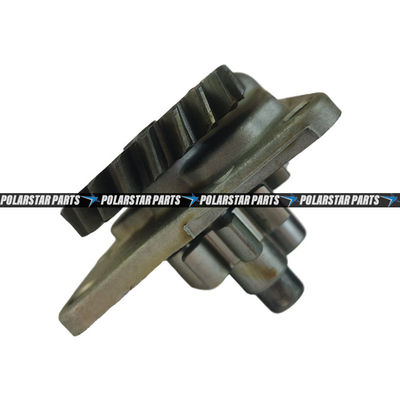

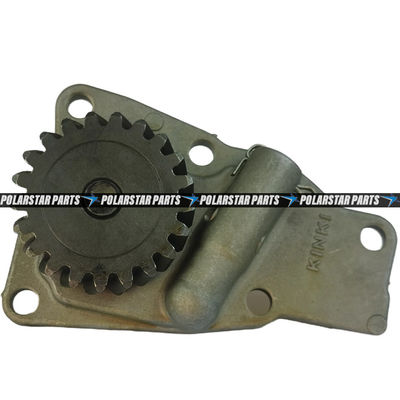

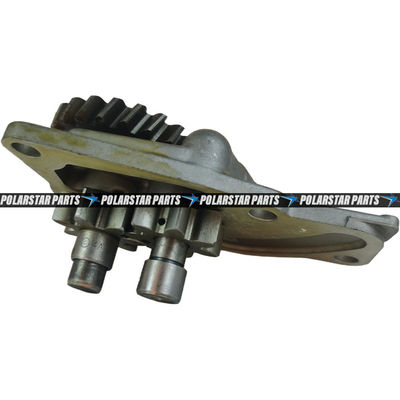

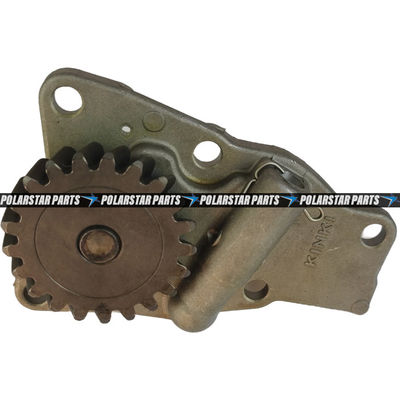

Item: oil pump
Part No. 6204-51-1100 6204-51-1201 4945774 4982682
Application: diesel engine
Model No.: B3.3 QSB3.3
MOQ:1 piece
Warranty: Not Available
Delivery time: one week
Sample: Not Available
Compatible equipment models: 6204-51-1100:
ENGINES 4D95L 4D95S Komatsu
Compatible equipment models: 6204-51-1201:
DIESEL GENERATORS EGS45
ENGINES 4D95L 4D95S S4D95LE
WHEEL LOADERS WA65 WA70 WA80 Komatsu
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 6204-51-1100 | [1] | OIL PUMP ASS'Y Komatsu China | ||
| ["SN: 10001-UP"] |$0. | ||||
| 6204-51-1201 | [1] | COVER ASS'Y Komatsu China | 0.507 kg. | |
| ["SN: 15705-UP"] |$1. | ||||
| 6204-51-1200 | [1] | COVER ASS'Y Komatsu China | 0.507 kg. | |
| ["SN: 10001-15704"] analogs:["6204511201"] |$2. | ||||
| 6204-51-1400 | [1] | SHAFT ASS'Y Komatsu China | ||
| ["SN: 10001-UP"] analogs:["6204511420"] |$5. | ||||
| 3. | 6204-51-1410 | [1] | GEAR,DRIVE Komatsu | 0.05 kg. |
| ["SN: 10001-UP"] | ||||
| 4. | 6206-51-1510 | [1] | GEAR Komatsu | 0.2 kg. |
| ["SN: 10001-UP"] | ||||
| 5. | 6204-51-1310 | [1] | VALVE Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 6. | 6204-51-1320 | [1] | SPRING Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 7. | 6204-51-1330 | [1] | WASHER Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 8. | 6204-51-1340 | [1] | PIN,COTTER Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 9. | 6204-51-1610 | [1] | GEAR,DRIVEN Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 10. | 01435-20816 | [4] | BOLT Komatsu | 0.013 kg. |
| ["SN: 10001-UP"] analogs:["0143500816"] | ||||
| 11. | 01435-20825 | [1] | BOLT Komatsu | 0.016 kg. |
| ["SN: 18064-UP"] analogs:["0143500825"] | ||||
| 12. | 6691-41-8230 | [1] | SPACER, 10MM Komatsu | 0.02 kg. |
| ["SN: 18064-UP"] | ||||
| 13. | 6201-51-6111 | [1] | TUBE,SUCTION Komatsu China | |
| ["SN: 16300-UP"] | ||||
| 13. | 6201-51-6110 | [1] | TUBE,SUCTION Komatsu China | |
| ["SN: 10001-16299"] | ||||
| 14. | 6140-51-6330 | [1] | O-RING (K2) Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 16. | 01435-20812 | [1] | BOLT Komatsu | 0.011 kg. |
| ["SN: 10001-UP"] analogs:["0143500812"] | ||||
