Product Details:
|
Condition: | New, China OEM | Showroom Location: | None |
---|---|---|---|
Warranty: | 3 Months | Product Type: | Excavator Oil Cooler / Radiator Core |
Shipping Weight: | 1.6964 KG | ||
High Light: | ZAX120 Oil Cooler Cores,4BG1 Oil Cooler Cores,4 Layers Excavator Engine Parts |

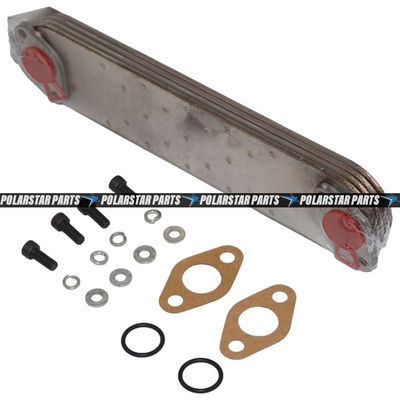

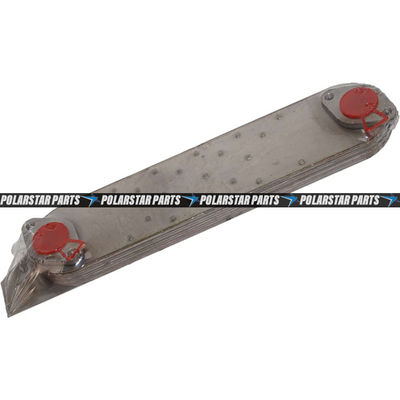

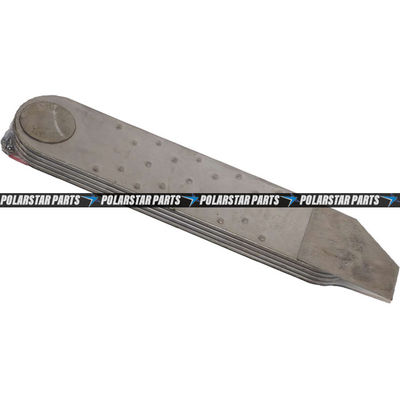

Excavator Engine Parts Oil Cooler Core Isuzu 4BG1 8-97032025-0 ZAX120 Engine 4 Layers
Product Description:
Material: Stainless steel
Package: Neutral Package
Adaptation engine: ISUZU 4BG1
Compatible equipment models: 135C RTS JD CP215 EG40R EX100-3C EX100-5 EX100-5 JPN EX100M-5 EX100WD-3C EX120-3C EX120-5 EX120-5 JPN EX120-5HG EX120-5LV JPN EX120-5X EX120-5Z EX120SS-5 EX130H-5 EX130H-5 JPN EX130K-5 EX135UR EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 EX150LC-5 HX220B HX220B-2 JD120 LX70-3 LX70-7 LX80-5 LX80-7 RT205 SR-P600 TX160 ZX110 ZX110-AMS ZX110-E ZX110-HCME ZX110M ZX110M-HCME ZX120 ZX120-E ZX120-HCMC ZX120-HHE ZX125US ZX125US-E ZX130-AMS ZX130H ZX130K ZX130L ZX130W ZX130W-AMS ZX135UR ZX135US ZX135US-E ZX135US-HCME ZX135USK ZX135USL ZX135USL-HCME ZX135UST ZX160 ZX160LC-AMS ZX160LC-HCME ZX160LCT ZX160W ZX160W-AMS ZX180LC ZX180LC-AMS ZX180LC-HCME ZX180W ZX180W-AMS ZX95 Hitachi
Parts on group:
Pos. |
Part No |
Qty |
Parts name |
Comments |
---|---|---|---|---|
002(A). |
8941609641 |
[1] |
ELEMENT; OIL FILTER |
A |
002(A). |
8943212191 |
[1] |
ELEMENT; OIL FILTER |
|
002(B). |
8970261342 |
[1] |
ELEMENT; OIL FILTER |
|
012. |
5112880020 |
[1] |
VALVE ASM; BYPASS |
|
089. |
5112890090 |
[4] |
BOLT; ELEMENT TO CASE |
C M8X16 |
089. |
0280808160 |
[4] |
BOLT; ELEMENT TO CASE |
M8X16 FLANGE |
090. |
1217290430 |
[4] |
GASKET; BOLT,OIL COOLER |
|
102. |
8970200372 |
[1] |
COOLER ASM; OIL |
|
109. |
8942059861 |
[1] |
BOLT; OIL COOLER TO BODY |
M8X65 W/LK WASHER |
109. |
0500408250 |
[11] |
BOLT; OIL COOLER TO BODY |
A M8X25 W/LK WASHER |
109. |
0500408200 |
[2] |
BOLT; OIL COOLER TO BODY |
A M8X20 W/LK WASHER |
109. |
0500408450 |
[8] |
BOLT; OIL COOLER TO BODY |
A M8X45 W/LK WASHER |
109. |
0505408250 |
[11] |
BOLT; OIL COOLER TO BODY |
M8X25 W/LK WASHER |
109. |
0505408200 |
[2] |
BOLT; OIL COOLER TO BODY |
M8X20 W/LK WASHER |
109. |
0505408450 |
[8] |
BOLT; OIL COOLER TO BODY |
M8X45 W/LK WASHER |
111. |
8970320250 |
[1] |
CORE; OIL COOLER |
|
112. |
8971281500 |
[1] |
PLUG; OIL COOLER CASE |
|
113. |
9095652250 |
[1] |
GASKET; PLUG,OIL COOLER CASE |
|
195. |
9095716200 |
[1] |
GASKET; OIL COOLER |
|
281(C). |
8970261332 |
[1] |
COVER; OIL FILTER |
|
288. |
9132630100 |
[2] |
PLUG; OIL DRAIN |
|
290. |
9099211930 |
[2] |
GASKET; PLUG,OIL DRAIN |
|
321. |
8943706700 |
[1] |
GASKET; OIL FILTER TO C/BL |
ALSO INCLUDED IN GASKET SET(ENGINE) |
329(A). |
0500410350 |
[1] |
BOLT; OIL FILTER |
A M10X35 W/LK WASHER |
329(A). |
0500410400 |
[1] |
BOLT; OIL FILTER |
A M10X40 W/LK WASHER |
329(A). |
0500410700 |
[1] |
BOLT; OIL FILTER |
A M10X70 W/LK WASHER |
329(A). |
5090000071 |
[1] |
BOLT; OIL FILTER |
A M10X135 |
329(A). |
0280810400 |
[1] |
BOLT; OIL FILTER |
A M10X40 FLANGE |
329(A). |
0280810700 |
[1] |
BOLT; OIL FILTER |
A M10X70 FLANGE |
329(A). |
0280860130 |
[1] |
BOLT; OIL FILTER |
A M10X130 FLANGE |
329(A). |
0286810350 |
[1] |
BOLT; OIL FILTER |
A M10X35 FLANGE |
329(A). |
0280510400 |
[1] |
BOLT; OIL FILTER |
M10X40 FLANGE |
329(A). |
0280510700 |
[1] |
BOLT; OIL FILTER |
M10X70 FLANGE |
329(A). |
0280560130 |
[1] |
BOLT; OIL FILTER |
M10X130 FLANGE |
329(A). |
0286510350 |
[1] |
BOLT; OIL FILTER |
M10X35 FLANGE |
329(B). |
8944295250 |
[3] |
BOLT; OIL FILTER |
M10X135 |
331. |
9091605100 |
[3] |
WASHER; PL,OIL FILTER |
A ID=10.5 |
331. |
0916105100 |
[3] |
WASHER; PL,OIL FILTER |
ID=10.5 |
392. |
9091505100 |
[8] |
WASHER; LK |
A ID=10.2 |
392. |
0915105100 |
[8] |
WASHER; LK |
ID=10.2 |
444. |
5112820110 |
[2] |
GASKET; ELEMENT TO BODY |
|
469. |
8970196530 |
[1] |
GASKET; OIL COOLER TO C/BL |
A ALSO INCLUDED IN GASKET SET(ENGINE) |
469. |
8972333023 |
[1] |
GASKET; OIL COOLER TO C/BL |
ALSO INCLUDED IN GASKET SET(ENGINE) |
496(C). |
8970209283 |
[1] |
FILTER ASM; OIL |
