Product Details:
|
| High Light: | 4bd1 Engine Cylinder Heads,4bg1 Engine Cylinder Heads,Sk120-6 Cylinder Head Isuzu |
||
|---|---|---|---|

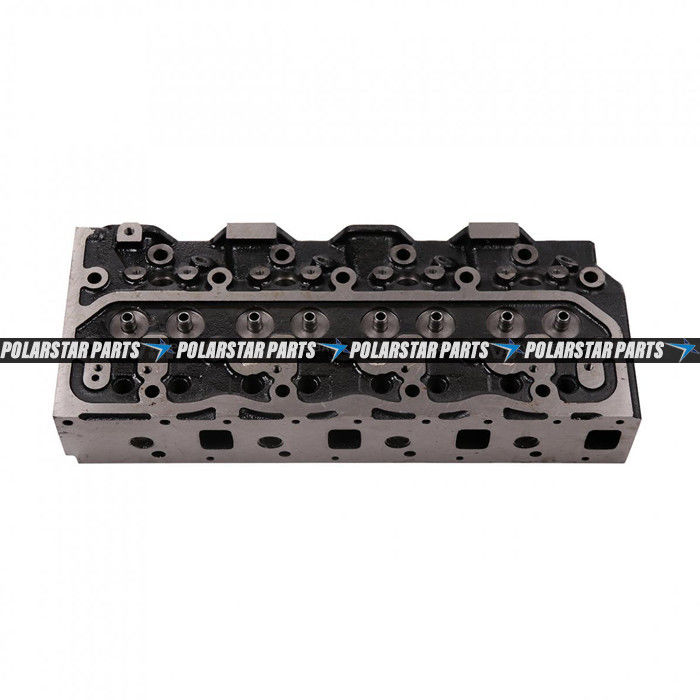

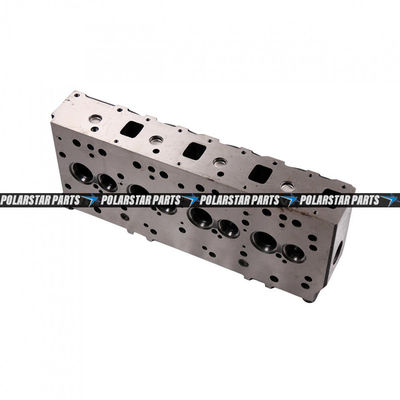

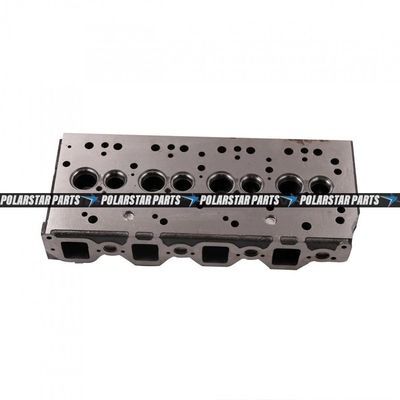

Cylinder Head Isuzu 4Bd1 4BG1 897141821 28970133201 EX120-5 VI5111102050 Sk120-6
Product Details
Product Name:Cylinder head
Brand:Polarstar Parts
Car make:Isuzu 4BD1 4BG1
OEM NO.:897141821 28970133201 VI5111102050
MOQ:1pcs
Package:(Neutral Package)Plastic,Carton,Wooden case/Pallet or according to customer's request
Payment Terms:T/T, L/C, Paypal, Western Union, Moneygram, etc
Compatible equipment models:CP215 EG40R EX100 EX100-2 EX100-3 EX100-3C EX100-5 EX100-5 JPN EX100M EX100M-2 EX100M-3 EX100M-5 EX100WD-2 EX100WD-3 EX100WD-3C EX120 EX120-2 EX120-3 EX120-3C EX120-5 EX120-5 JPN EX120-5HG EX120-5LV JPN EX120-5X EX120-5Z EX120K-2 EX120K-3 EX120SS-5 EX130H-5 EX130H-5 JPN EX130K-5 EX135UR EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 EX150 EX150LC-5 EX90 EX90-2 HX220B JD120 LX70 LX70-3 LX80-5 RT205 RX1200 SR-P600 Hitachi
Parts on group 011: CYLINDER HEAD:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8970133201 | [1] | HEAD ASM; CYL | C |
| 001. | 8971418212 | [1] | HEAD ASM; CYL | |
| 002. | 8944189201 | [1] | GASKET; CYL HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 003. | 8943674370 | [4] | BOLT; CYL HD TO BLOCK | A M12X102 |
| 003. | 8943674380 | [14] | BOLT; CYL HD TO BLOCK | A M12X115 |
| 003. | 1090701001 | [4] | BOLT; CYL HD TO BLOCK | M12X100 |
| 003. | 1090701011 | [14] | BOLT; CYL HD TO BLOCK | M12X113 |
| 004. | 5117210010 | [8] | GUIDE; VLV | A |
| 004. | 1117210130 | [8] | GUIDE; VLV | |
| 005(A). | 8970376861 | [4] | SEAT; VLV INSERT | OD=47 INLET |
| 005(B). | 5117110280 | [4] | SEAT; VLV INSERT | OD=39 EXHAUST |
| 006. | 9096600340 | [4] | PLUG; PLATE | |
| 007(A). | 1096000052 | [1] | CUP; SEALING,CYL HEAD | OD=45 |
| 007(B). | 5112190150 | [2] | CUP; SEALING,CYL HEAD | OD=32 |
| 007(C). | 1096000160 | [7] | CUP; SEALING,CYL HEAD | OD=25 |
| 007(D). | 9111291280 | [2] | CUP; SEALING,CYL HEAD | OD=20 |
| 007(E). | 5096000130 | [4] | CUP; SEALING,CYL HEAD | OD=12.3 |
| 008. | 9111296010 | [4] | CUP; SEALING,WATER JACKET | |
| 009. | 9041108250 | [2] | STUD; INL MANIF | M8X25 L=37 |
| 009. | 9041108250 | [4] | STUD; INL MANIF | A M8X25 L=37 |
| 009. | 0410108250 | [4] | STUD; INL MANIF | M8X25 L=37 |
| 010. | 9825139289 | [4] | PLUG; GLOW | C |
| 010. | 1825130432 | [4] | PLUG; GLOW | |
| 011. | 5197320022 | [1] | CONNECTOR; GLOW PLUG | |
| 012. | 9117778050 | [1] | HANGER; ENG,RR | |
| 013. | 0500410200 | [4] | BOLT; HANGER | A M10X20 W/LK WASHER |
| 013. | 0280810200 | [4] | BOLT; HANGER | A M10X20 FLANGE |
| 013. | 0280510200 | [4] | BOLT; HANGER | M10X20 FLANGE |
| 014. | 8941569390 | [2] | STUD; EXH MANIF | M8X75 L=87 |
| 014. | 8941569400 | [2] | STUD; EXH MANIF | M8X60 L=72 |
| 053. | 1093000180 | [8] | STUD; INJ NOZZLE | M8X40 L=58 |
| 054. | 5093000650 | [3] | STUD; ROCKER ARM | M8X79 L=92 |
| 168(C). | 8971315880 | [1] | HANGER; ENG,FRT |
