Product Details:
|
| Material: | Stainless Steel And Aluminum | Quality: | High Performance 100% Tested |
|---|---|---|---|
| Application: | Engine Cooling System | Product Name: | Oil Cooler Assy |
| Gross Weight: | 1.2kg | Packing: | Neutral Packing |
| High Light: | 4d31 Mitsubishi Engine Spares,4D32 Mitsubishi Engine Spares,26410-41013 |
||

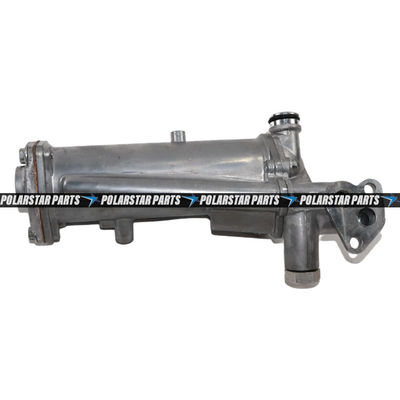

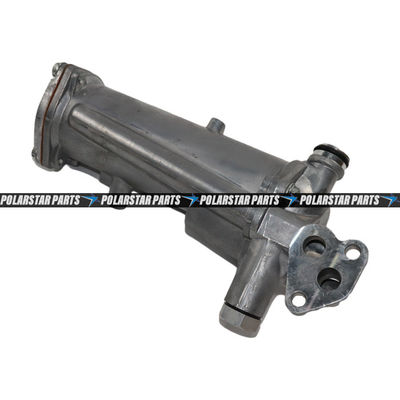

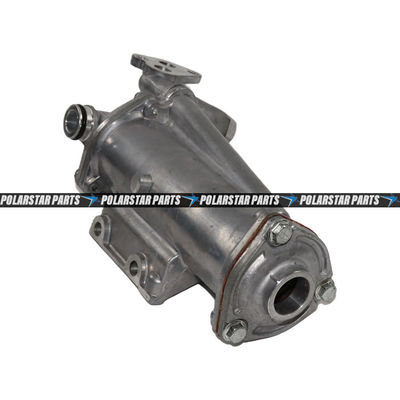

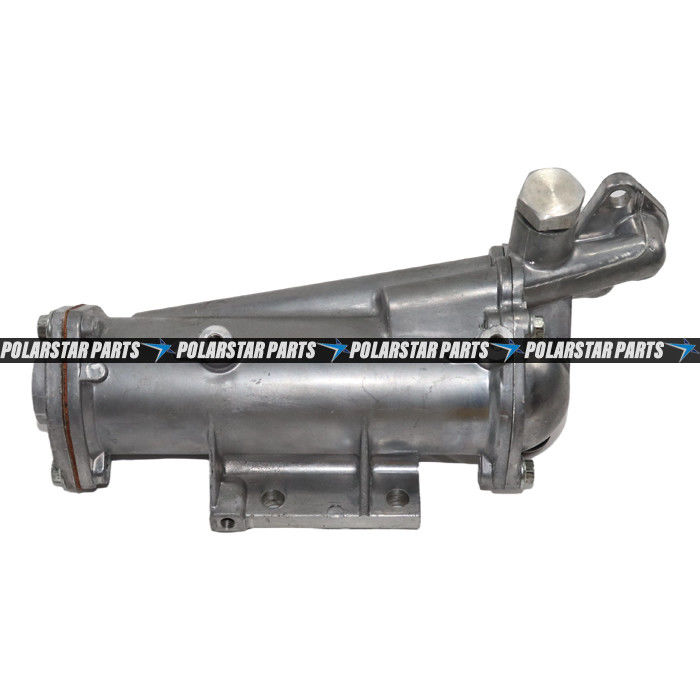

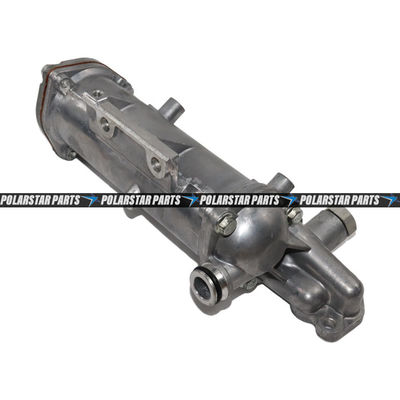

Mitsubishi Engine 4d31 4D31T 4D32 Oil Cooler Assy Me014779 26410-41013 Excavator E70b
Product Description
Application:Construction / Industry / Agriculture / Genset / Marine / Handling
Engine model:4D31
Brand Name:Polarstar Parts
Size:OEM Size
Packing:Plastic bag , Box , Carton
Place Of Origin:Made in China or Genuine Parts
Warranty:Within 6 Months
OEM Service:Available
Compatible equipment models:ENGINES 4D31-T Kobelco
Parts department details
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1-13. | VAME014778 | [1] | OIL COOLER OIL COOLER ASSY | OIL COOLER OIL COOLER ASSY |
| 1. | VAME014766 | [1] | ELEMENT | KOB ELEMENT, OIL COOLER |
| 2. | VAME014779 | [1] | SHELL, OIL COOLER | |
| 3. | VAME014777 | [1] | COVER, OIL COOLER RE | |
| 4. | VAME014757 | [1] | COVER | KOB COVER, OIL COOLER FR |
| 5. | VAME014715 | [1] | GASKET | KOB GASKET |
| 6. | VAME014772 | [2] | O-RING | KOB O-RING |
| 7. | VAMH035091 | [2] | O-RING | KOB O-RING 22 |
| 8. | VAMF140025 | [6] | SCREW | KOB BOLT, FLANGE 8 X 20 |
| 10. | VAME084527 | [1] | VALVE PRESSURE RELIE | KOB VALVE Superseded by part number: 240095A1 |
| 11. | VAME084526 | [1] | SPRING | KOB SPRING |
| 12. | VAME014717 | [1] | PINION | KOB PLUG Superseded by part number: 240099A1 |
| 13. | VAMH035044 | [1] | O-RING | KOB O-RING 18 Superseded by part number: 240098A1 |
| 15. | VAMF520016 | [1] | O-RING | KOB O-RING 22.1 |
| 16. | VAMH035015 | [2] | O-RING | KOB O-RING 17 |
| 17. | VAMF140225 | [2] | BOLT | KOB BOLT, FLANGE 8 X 20 |
| 18. | VAMH000714 | [2] | BOLT | KOB BOLT, FLANGE 10 X 25 |
| 19. | VAME014780 | [1] | INSULATOR, HEAT O/C | |
| 20. | VAMF140221 | [3] | BOLT | KOB BOLT, FLANGE 8 X 12 |
| 30-34. | VAME014773 | [1] | O-RING KIT | KOB O-RING KIT |
| 30. | VAME014772 | [2] | O-RING | KOB O-RING |
| 31. | VAMH035091 | [2] | O-RING | KOB O-RING 22 |
| 32. | VAMH035044 | [1] | O-RING | KOB O-RING 18 Superseded by part number: 240098A1 |
| 33. | VAMF520016 | [3] | O-RING | KOB O-RING 22.1 |
| 34. | VAMH035015 | [2] | O-RING | KOB O-RING 17 |
