Product Details:
|
| Place Of Origin: | Made In China | Engine Type: | Diesel |
|---|---|---|---|
| Product Name: | Piston | Size: | OEM Standard Size |
| Quality: | High Performance | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | Sk230 Overhaul Rebuild Kit,6d31t Overhaul Rebuild Kit,4D31T Diesel Engine Piston |
||

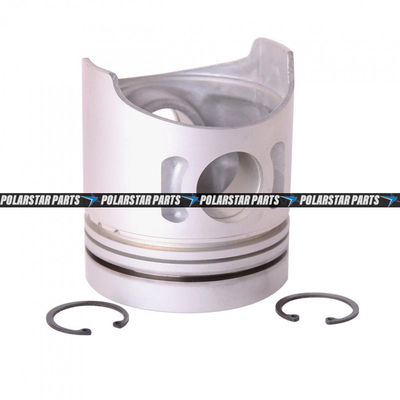

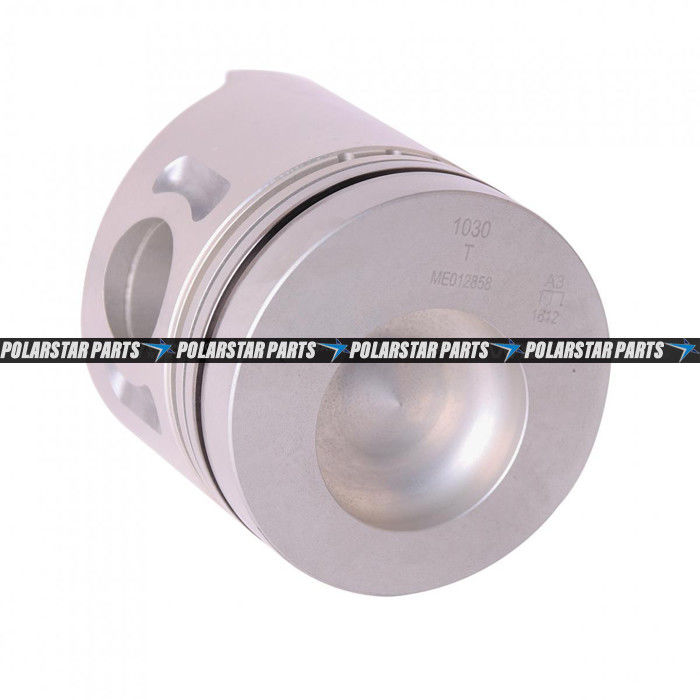

6d31t Diesel Cylinder Piston Mitsubishi Sk230 Engine Parts 4D31T VAME012858 ME012858
| Model | 6D31 6D31T 4D31T |
| Product Name | Piston |
| Part Number | VAME012858 ME012858 VAME012859 VAME012860 VAME012861 |
| Quality | Top |
| Condition | 100%new |
| Application | Engineering Machinery Engine |
| Excavator Model | ENGINES 4D31-T 6D31-T HEAVY EQUIPMENT K907LC MD200C SK200 SK200LC Kobelco |
| H.S Code | 8409999990 |
Parts on group (6D31-T):
03006. VAME012232 [12] SPECIAL BOLT KOB BOLT, CONNROD, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: 12x85
03010A. VAME012265 [6] CONN. ROD SHELL KOB CONNECTING ROD ASSY, FROM-UP TO: 9102.1-, MODEL TYPE: ALL
03016. VAME012234 [6] BUSHING KOB BUSHING, CONNROD, FROM-UP TO: 9102.1-, MODEL TYPE: ALL
03021. VAME023769 [1] ROCKER ARM COTTER KOB CONE, CRANKSHAFT PULLEY, FROM-UP TO: 9102.1-, MODEL TYPE: ALL
03031. VAME023570 [12] NUT KOB NUT, CONNROD, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: FLANGE, 12
03036. VAME012009 [6] PISTON PIN KOB PIN, PISTON, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: 34x84
03037. VAME012858 [1] PISTON KOB PISTON, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: STD
. . VAME012859 [6] PISTON KOB PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.25
. . VAME012860 [6] PISTON KOB PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.50
. . VAME012861 [6] PISTON KOB PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.75
. . VAME012862 [6] MANIFOLD PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.00 MANIFOLD PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.00
03047. VAME088582 [1] PULLEY KOB PULLEY, CRANKSHAFT, FROM-UP TO: 9102.1-, MODEL TYPE: ALL
03050. VAME999726 [1] BEARING SET KOB BEARING SET, CONNROD, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: STD Superseded by part number: VAME995170
. . VAME999727 [1] BEARING SET KOB BEARING SET, CONNROD, FROM-UP TO: 9102.1-, Remarks: U/SIZE 0.25 Superseded by part number: VAME995171
. . VAME999728 [1] BEARING SET KOB BEARING SET, CONNROD, FROM-UP TO: 9102.1-, Remarks: U/SIZE 0.50 Superseded by part number: VAME995172
. . VAME999729 [1] BEARING SET KOB BEARING SET, CONNROD, FROM-UP TO: 9102.1-, Remarks: U/SIZE 0.75 Superseded by part number: VAME995173
. . VAME999730 [1] BEARING SET KOB BEARING SET, CONNROD, FROM-UP TO: 9102.1-, Remarks: U/SIZE 1.00 Superseded by part number: VAME995174
03060. VAME997458 [1] PISTON RINGS KIT KOB RING SET, PISTON, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: STD
. . VAME997459 [1] RING, SET KOB RING SET, PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.25
. . VAME997460 [1] PISTON RING KOB RING SET, PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 0.50
. . VAME997461 [1] SET OF RINGS KOB RING SET, PISTON, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: D/SIZE 0.75
. . VAME997462 [1] RING, SET KOB RING SET, PISTON, FROM-UP TO: 9102.1-, Remarks: D/SIZE 1.00
03785. VAMH004045 [1] NUT KOB NUT, CRANKSHAFT PULLEY, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: FLANGE, 24
03788. VAMF472407 [1] PIN KOB PIN, CRANKSHAFT, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: DOWEL, 14x28
03789. VAMS476137 [2] WOODRUFF KEY KOB KEY, CRUNKSHAFT, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: WOODRUFF, 7X22 Superseded by part number: VAF287007022
03791. VAMH035180 [1] O-RING KOB O-RING, CRANKSHAFT PULLEY, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: 34
03798. VAME012061 [12] SNAP RING KOB SNAP RING, PISTON, FROM-UP TO: 9102.1-, MODEL TYPE: ALL, Remarks: 37.2 Superseded by part number: VAME015917
